Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

Name: Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch Substrate With Groove
Brand: Customized
Price: 1 USD

Quality Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove wholesale

Brand Name : Customized

Model Number : OEM

Certification : ISO2008, TUV,

Place of Origin : Guangdong, China(mainland)

MOQ : 1 PC

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal, D/P, D/A, MoneyGram

Supply Ability : 5000 pcs per month

Delivery Time : 14-34 working days after receiving deposit

Packaging Details : Packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Product name : Zirconia Ceramic Pressure Switch / Substrate

Material : Zirconia / alumina ceramic

HV Hardness : 1300 - 1650 Mpa

Density : 3.9g/cm3 / >6.0g/cm3

Dielectric Strength : 9.5 9.8 26

Compressive Strength@Room Temperature : 2000 - 2200 Mpa

Flexural Strength @ Room Temperature : Mpa / 280 ( 95 al3o2 ), 310 ( 99 al3o2 ), 950 ( zirconia )

Max application temperature : W / m * k / 18 - 25 ( 95 al3o2 ), 26 - 30 ( 99 al3o2 ), 2.0 - 2.2 ( zro2 )

Color and Size : White; Customized size

Application : Zirconia Ceramic Pressure Switch / Substrate

Contact Now

Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

Product Description

Hollow Machining Ceramic Parts made by advance technical ceramics,like:95%--99.99% Alumina(Al2O3), Zirconia(ZrO2) ,Silicon Carbide,Silicon Nitride ...etc which have a excellent Physical properties,Mechanical properties,Electrical properties,Thermal properties. Wear hardness strength resistance.

Advantages of Zirconia Ceramic Pressure Switch / Substrate:

1. Refractory.
2. Long Service Life.
3. Good Polished Surface.
4. Superior Mechanical Strength.
5. High Corrosion and Wear Resistance.
6. Good Insulation Performance Precision.
7. High Temperature and Pressure Resistance.
8. High Purity Zirconia and Alumina Ceramic Material.

High hardness, long service life, not easy to break and wear resistance.
Non-conductive, anti-static, ceramic material itself with the insulation of electricity and magnetism properties.
Corrosion resistance, high temperature resistance, can be applied to a specific environment, such as acid and alkali resistance.

They deliver 10 times longer working life than metal rods.

Properties Sheet:

Properties	Units	95 Alumina	99 Alumina	Zirconia
Density	ɡ / cm³	3.65	3.92	5.95 - 6.0
Water Absorption	％	0	0	0
Coefficient of Thermal Expansion	10^-6 / K	7.9	8.5	10.5
Modulus of Elasticity Young’s Mod	Gpa	280	340	210
Poisson’s Ratio	/	0.21	0.22	0.3
HV Hardness	Mpa	1400	1650	1300 - 1365
Flexural Strength @ Room Temperature	Mpa	280	310	950
Flexural Strength @ 700℃	Mpa	220	230	210
Compressive Strength@Room Temperature	Mpa	2000	2200	2000
Fracture Toughness	Mpa * m^½	3.8	4.2	10
Heat Conductivity @ Room Temperature	W / m * k	18 - 25	26 - 30	2.0 - 2.2
Electrical Resistivity @ Room Temperature	Ω*mm² / m	＞10¹⁵	＞10¹⁶	＞10¹⁵
Max Application Temperature	℃	1500	1750	1050
Resistance to Acid Alkaline	/	High	High	High
Dielectric Constant	/	9.5	9.8	26
Dielectric Strength	KV / mm	16	22	/
Thermal Shock Resistance	Δ T ( ℃ )	220	180 - 200	282 - 350
Tensile Strength @ 25℃	Mpa	200	248	252

Materials:
· 95%--99.99% Alumina (Al2O3)
· Silicon Carbide
· Silicon Nitride
· TTZ: Magnesia partially stabilized Zirconia (ZrO2)
· YTZP: Yttria partially stabilized Zirconia (ZrO2)
· ZDY: Yttria fully stabilized Zirconia (ZrO2)
· Others
Detailed Images

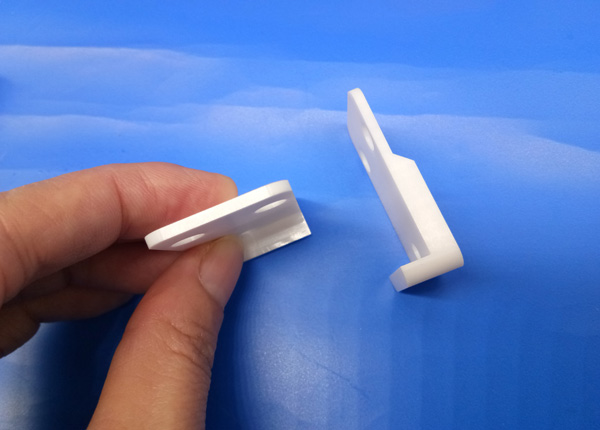

Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

Related Products
Alumina Ceramic Rings

Black Alumina Ceramic Square Tube

View More Products
Packaging and Shipping

Zirconia Ceramic Pressure Switch / Substrate will be packed in a bubble bag individually, then separated by a foam, finally put in standard export carton packing, or OEM packing.

Shipped by Air ( DHL, TNT, UPS, Fedex, EMS ), or Sea transportation.

Hollow Machining Ceramic Parts Zirconia Ceramic Pressure Switch / Substrate With Groove

Delivery:
Custom OEM will be shipped within 15 days after determining the parameters
The samples will be shipped within 3 days
Quick Delivery Via Fedex,DHL,UPS,TNT Etc.
Support customer to designate shipping company
For more informations (the price,delivery time,moq etc)about the ceramic plates, please contact us or email:admin@cerampart.com
CEO: Admin deng
Dongguan Mingrui Ceramic Tech. Co. Ltd.
Add: No.21 Chuangxing Rd., 2nd Industrial Zone of Shangsha,
Chang'an town, Dongguan city, Guangdong, China 523867
Email: admin@cerampart.com
FAQ
1. Monthly Capacity: 50,000-60,000 pcs;
2. Material: OEM or as per your suggestion;
3. Lead time: about 7-20 days, pls confirm the quantities required;
4. Incoterm: FOB, CFR, CIF;
5. Delivery Cost: It is determinated by the destination port;
6. Payment Term: PayPal; T/T; L/C.
7. Shipment: by sea, by air, by courier, by post, etc.
